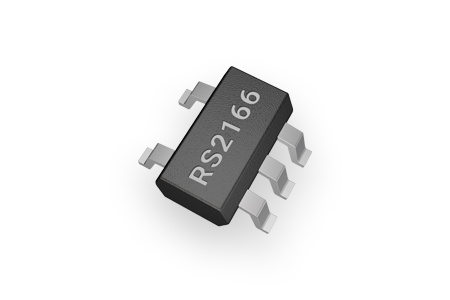

The RS2166 is a bidirectional 1-channel single-pole single-throw (SPST) analog switch, which is designed to operate from 1.8V to 5.5V.
DESCRIPTION
The RS2166 is a bidirectional 1-channel single-pole?single-throw (SPST) analog switch, which is designed?to operate from 1.8V to 5.5V.
The RS2166 device can handle both analog and?digital signals. It features bandwidth(300MHz) and?low on-resistance (4.5? TYP).?Each switch section has its own enable-input control?(SEL). A high-level voltage applied to SEL turns on?the associated switch section.?Applications include signal gating, chopping,?modulation or demodulation (modem), and signal?multiplexing for analog-to-digital and digital-to-analog?conversion systems.
FEATURES
? Bandwidth: 300MHz
? High Speed, Typically 30ns
? Supply Range: +1.8V to +5.5V
? Low ON-State Resistance:4.5Ω(TYP)
? Rail-to-Rail Operation
? TTL/CMOS Compatible
? Extended Industrial Temperature?Range: -40°C to +125°C
? PACKAGES: SOT23-5, SOT353(SC70-5)
APPLICATIONS
? Wireless Devices
? Audio and Video Signal Routing
? Portable Computing
? Wearable Devices
? Signal Gating, Chopping, Modulation or?Demodulation (Modem)
? Cell Phones
PIN CONFIGURATIONS
