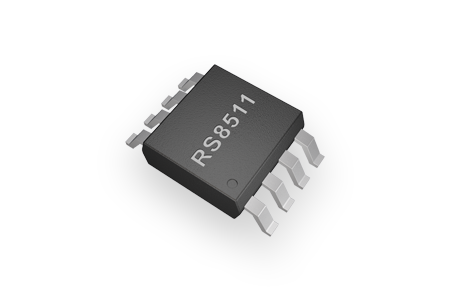

RS8511
精密運算放大器
RS8511

The RS8511, RS8512, RS8514, RS8513(dual version &shutdown) series of CMOS operational amplifiers use auto-zero techniques to simultaneously provide very low offset voltage (40μV max) and near-zero drift over time and temperature. This family of amplifiers

GENERAL DESCRIPTION


The RS8511, RS8512, RS8514, RS8513(dual version &shutdown) series of CMOS operational amplifiers use auto-zero techniques to simultaneously provide very low offset voltage (40μV max) and near-zero drift over time and temperature. This family of amplifiers has ultralow noise, offset and power.

This miniature, high-precision operational amplifiers offset high input impedance and rail-to-rail input and rail-to-rail output swing. With high gain-bandwidth product of 350KHz and slew rate of 0.17V/μs. Single or dual supplies as low as +2.5V(±1.25V) and up to +5.5V (±2.75V) may be used.

The RS8511/RS8512/RS8514/RS8513(dual version with shutdown) are specified for the extended industrial and automotive temperature range (-40°C to 125°C). The RS8511 single amplifier is available in 5-lead SOT23, 8-lead MSOP8 and 8-lead SOIC packages, The RS8512 dual amplifier is available in 8-lead SOIC, 8-lead TDFN2x2 and 8-lead TSSOP narrow surface mount packages, The RS8513(dual version with shutdown) comes in Micro-SIZE MSOP- 10. The RS8514 quad is available in 14-lead SOIC and 14-lead narrow TSSOP packages.


FEATURES


? Low Offset Voltage: 40uV (Maximum)
? Input Offset Drift: 0.05μV/°C
? High Gain Bandwidth Product: 350KHz
? Rail-to-Rail Input and Output
? High Gain, CMRR, PSRR:130dB
? High Slew Rate: 0.17V/μs
? Low Noise: 1.6uVp-p (0.01~10Hz)
? Low Power Consumption: 60μA /op amp
? Overload Recovery Time:6us
? Low Supply Voltage: +2.5 V to +5.5 V
? No External Capacitors Required
? Extended Temperature: -40°C to +125°C


APPLICATIONS


? Temperature Sensors
? Medical/Industrial Instrumentation
? Pressure Sensors
? Battery-Powered Instrumentation
? Active Filtering
? Weight Scale Sensor
? Strain Gage Amplifiers
? Power Converter/Inverter


PIN CONFIGURATIONS
