GENERAL DESCRIPTION

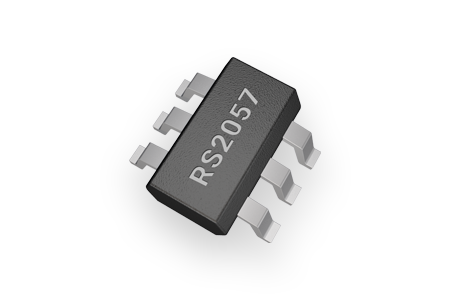

The RS2057 is a single-pole double-throw (SPDT) analog switch that is designed to operate from 1.8 V to 5.5 V.?

The RS2057 device can handle both analog and digital signals. It features hign-bandwidth(300MHz) and low on-resistance (4.5Ω TYP).?

Applications include signal gating, chopping, modulation or demodulation (modem), and signal multiplexing for analog-to-digital and digital-to-analog conversion systems.

FEATURES

? High Bandwidth: 300MHz
? High Speed, Typically 30ns
? Supply Range: +1.8V to +5.5V
? Low ON-State Resistance, 4.5Ω(TYP)
? Break-Before-Make Switching
? Rail-to-Rail Operation
? TTL/CMOS Compatible
? Extended Industrial Temperature Range: -40°C to +125°C
? MicroSIZE PACKAGES: SOT363 (SC70-6), SOT23-6

APPLICATIONS

? Wearable Devices
? Battery-Operated Equipment
? Signal Gating, Chopping, Modulation or Demodulation (Modem)?

? Portable Computing
? Cell Phones

PIN CONFIGURATIONS
