DESCRIPTION

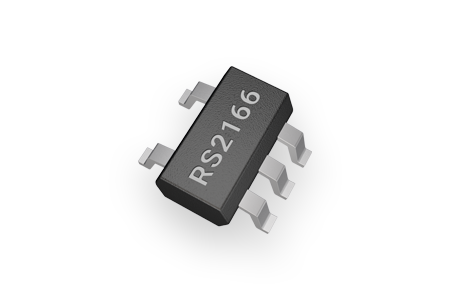

The RS2166 is a bidirectional 1-channel single-pole?single-throw (SPST) analog switch, which is designed?to operate from 1.8V to 5.5V.

The RS2166 device can handle both analog and?digital signals. It features bandwidth(300MHz) and?low on-resistance (4.5? TYP).?Each switch section has its own enable-input control?(SEL). A high-level voltage applied to SEL turns on?the associated switch section.?Applications include signal gating, chopping,?modulation or demodulation (modem), and signal?multiplexing for analog-to-digital and digital-to-analog?conversion systems.

FEATURES

? Bandwidth: 300MHz

? High Speed, Typically 30ns

? Supply Range: +1.8V to +5.5V

? Low ON-State Resistance:4.5Ω(TYP)

? Rail-to-Rail Operation

? TTL/CMOS Compatible

? Extended Industrial Temperature?Range: -40°C to +125°C

? PACKAGES: SOT23-5, SOT353(SC70-5)

APPLICATIONS

? Wireless Devices

? Audio and Video Signal Routing

? Portable Computing

? Wearable Devices

? Signal Gating, Chopping, Modulation or?Demodulation (Modem)

? Cell Phones

PIN CONFIGURATIONS
