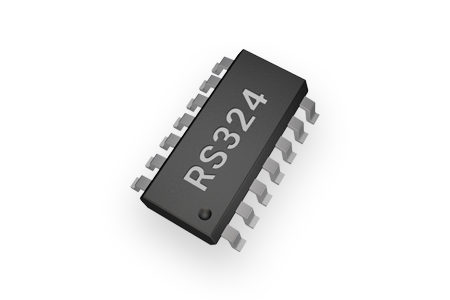

RS324
General Operational Amplifier
RS324

The RS321, RS358, RS324, RS321S, RS358S families of products offer low voltage operation and rail-to-rail input and output, as well as excellent speed/power consumption ratio, providing an excellent bandwidth (1.1MHz) and slew rate of 0.5V/us.

GENERAL DESCRIPTION


The RS321, RS358, RS324, RS321S, RS358S families of products offer low voltage operation and rail-to-rail input and output, as well as excellent speed/power consumption ratio, providing an excellent bandwidth (1.1MHz) and slew rate of 0.5V/us. The op-amps are unity gain stable and feature an ultra-low input bias current.?

The devices are ideal for sensor interfaces, active filters and portable applications. The RS321S, RS358S include a shutdown mode. Under logic control, the amplifiers can be switched from normal operation to a standby current that is less than 1uA.The RS321, RS358, RS324, RS321S, RS358S families of operational amplifiers are specified at the full temperature range of ?40°C to +125°C under single or dual power supplies of 2.5V to 5.5V.


FEATURES


? HIGH GAIN BANDWIDTH:1.1MHz
? RAIL-TO-RAIL INPUT AND OUTPUT 0.8mV Typical Vos
? INPUT VOLTAGE RANGE: -0.1V to +5.6V with Vs = 5.5V
? SUPPLY RANGE: +2.5V to +5.5V
? SHUTDOWN: RS321S/RS358S
? SPECIFIED UP TO +125°C
? MicroSIZE PACKAGES: SOT23-5, SOT23-6


APPLICATIONS



? SENSORS
? PHOTODIODE AMPLIFICATION
? ACTIVE FILTERS
? TEST EQUIPMENT
? DRIVING A/D CONVERTERS

?

PIN CONFIGURATIONS
