RS8752
高速オペアンプ

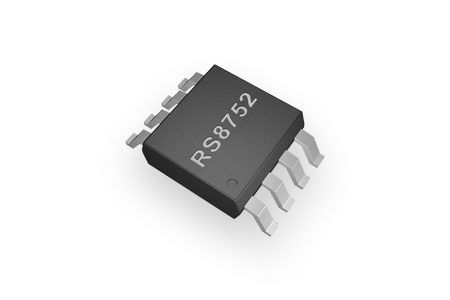

RS8752

The RS875X families of voltage-feedback (VFB) products offer low voltage operation, negative-rail input, rail-to-rail output, as well as excellent speed/power consumption ratio, providing an excellent bandwidth (250MHz) and slew rate of 180V/us.

GENERAL DESCRIPTION


The RS875X families of voltage-feedback (VFB) products offer low voltage operation, negative-rail input, rail-to-rail output, as well as excellent speed/power consumption ratio, providing an excellent bandwidth (250MHz) and slew rate of 180V/us. The op-amps are unity gain stable and feature an ultra-low input bias current.?

These amplifiers set an industry-leading power-toperformance ratio for rail-to-rail amplifiers. The RS875X families of operational amplifiers are specified at the full temperature range of ?40°C to +125°C under single or dual power supplies of 2.5V to 5.5V.


FEATURES


? HIGH GAIN BANDWIDTH:250MHz
? RAIL-TO-RAIL OUTPUT
? 1.5mV Typical Vos
? INPUT VOLTAGE RANGE: -0.2V to +3.9V with Vs = 5V
? SUPPLY RANGE: +2.5V to +5.5V
? SPECIFIED UP TO +125°C
? Micro SIZE PACKAGES: SOT23-5


APPLICATIONS


? AUDIO ADC INPUT BUFFERS
? PHOTODIODE PREAMP
? HIGH-DENSITY SYSTEMS
? PORTABLE SYSTEMS
? DRIVING A/D CONVERTERS


PIN CONFIGURATIONS
