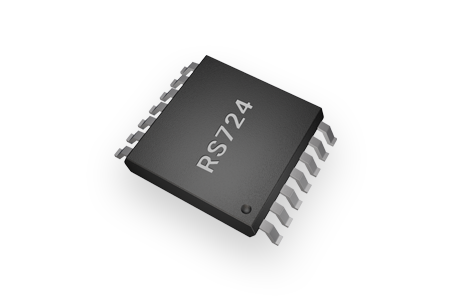

RS724P
低オフセット電圧オペアンプ
RS724P

The RS721P, RS722P, RS724P families of products offer low voltage operation and rail-to-rail input and output, as well as excellent speed/power consumption ratio

GENERAL DESCRIPTION


The RS721P, RS722P, RS724P families of products offer low voltage operation and rail-to-rail input and output, as well as excellent speed/power consumption ratio, providing an excellent bandwidth (10MHz) and slew rate of 7V/us. The op-amps are unity gain stable and feature an ultra-low input bias current.?

The RS721P, RS722P and RS724P has lower offset, which is guaranteed not upper than ±0.8mV at 25°C with Vs = 5V, Vcm = Vs/2.?

The devices are ideal for sensor interfaces, active filters and portable applications. The RS721P, RS722P, RS724P families of operational amplifiers are specified at the full temperature range of ?40°C to +125°C under single or dual power supplies of 2.5V to 5.5V.


FEATURES


? HIGH GAIN BANDWIDTH:10MHz
? RAIL-TO-RAIL INPUT AND OUTPUT ±0.8mV Typical Vos
? INPUT VOLTAGE RANGE: -0.1V to +5.6V with Vs = 5.5V
? SUPPLY RANGE: +2.5V to +5.5V
? SPECIFIED UP TO +125°C
? MicroSIZE PACKAGES: SOT23-5


APPLICATIONS


? SENSORS
? PHOTODIODE AMPLIFICATION
? ACTIVE FILTERS
? TEST EQUIPMENT
? DRIVING A/D CONVERTERS


PIN CONFIGURATIONS
