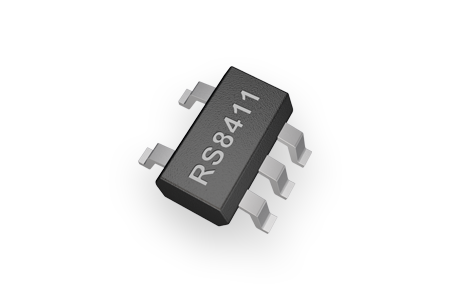

RS8411
高電圧汎用アンプ
RS8411

The RS841X families of products offer high voltage (36V) operation and rail-to-rail output, as well as excellent speed/power consumption ratio, providing an excellent bandwidth (1.2MHz) and slew rate of 0.67V/us.

GENERAL DESCRIPTION


The RS841X families of products offer high voltage ?(36V) operation and rail-to-rail output, as well as ?excellent speed/power consumption ratio, providing an ?excellent bandwidth (1.2MHz) and slew rate of 0.67V/us. ?The op-amps are unity gain stable and feature an ultralow input bias current. The devices are stable at capacitance up to 300pF.The ?input can operate normally within 100mV below of the ?negative power rail to 2V below of the positive power ?rail. The RS841X families of operational amplifiers are ?specified at the full temperature range of ?40°C to ?+125°C under single power supplies of 3V to 36V or dual ?power supplies of ±1.5V to ±18V.


FEATURES


? HIGH GAIN BANDWIDTH:1.2MHz

? INPUT OFFSET VOLTAGE:±0.8mV ?(Typical)

? QUIESCENT CURRENT:100uA/Amp

? Rail to Rail Output

? Common-Mode Input Voltage Range Include Ground

? Supply Range: +3V to +36V

? SPECIFIED UP TO +125°C

? Micro SIZE PACKAGES:? SOT23-5


APPLICATIONS


? SENSORS

? PHOTODIODE AMPLIFICATION

? ACTIVE FILTERS

? TEST EQUIPMENT

? DRIVING A/D CONVERTERS
